Additional information
| Weight | 0.375 kg |
|---|---|
| Dimensions | 9.4 × 5.4 × 7.5 mm |
| Product group | |
| Brand | |
| GTIN_EAN_13 code | |
| GTIN_EAN_14 code |
FREE SHIPPING for orders over R500
Lorem ipsum dolor sit amet Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor.
ACTI9 IC60A 3P 50A C MINIATURE CIRCUIT B
Available for Quotation
Out of stock
Out of stock
Out of stock
Select a branch for in-store stock availabilitySelect Branch
- Fast, Secure Delivery available (Standard Delivery: 2 - 3 working days | Next working day)
- Standard 1 Year warranty available. Learn more
- 7-day returns with the option of a refund, or replacement, available online or at your nearest ARB store. Learn more

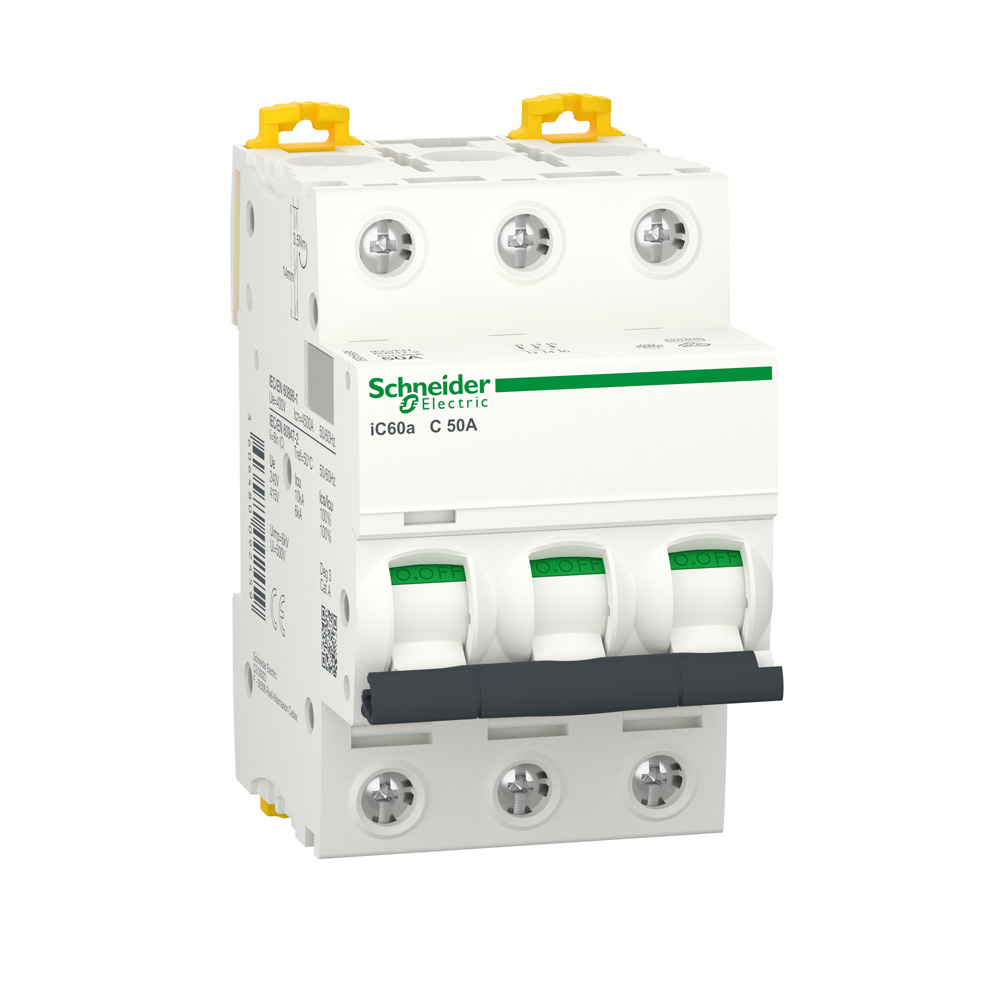

This Acti9 iC60a is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles 50A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 4500A at 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. It has an IP20 B degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.
Miniature circuit-breaker Acti9 iC60a 3P 50 A C curve 4500 A (IEC 60898-1) 6 kA (IEC 60947-2)
